Battery Powered Rapid Deployment Camera Systems
100% Battery Powered Wireless Portable Camera Systems

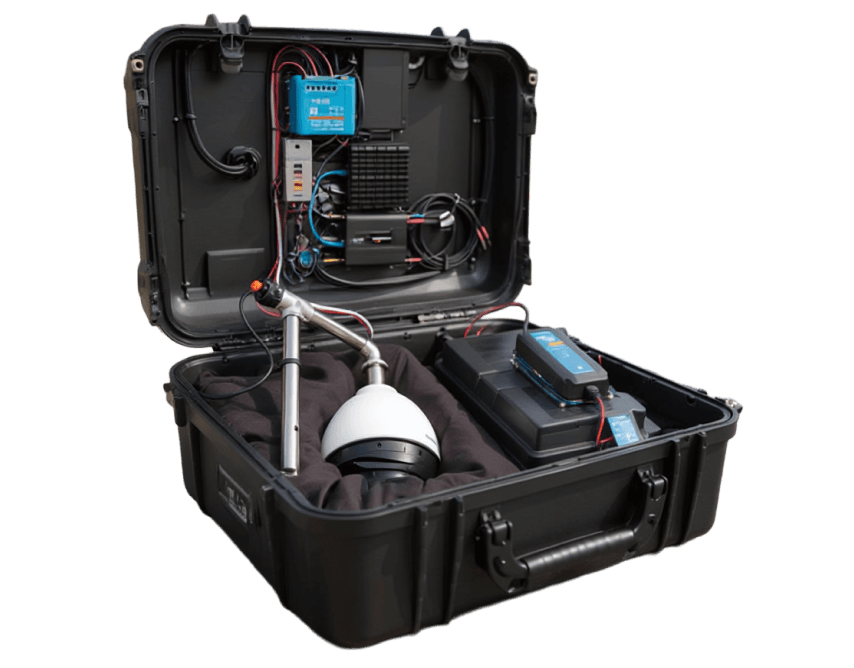

Fully integrated, self-contained, battery powered IP video & audio system includes high performance IP cameras, 4G/LTE cellular and point-to-point wireless communications.

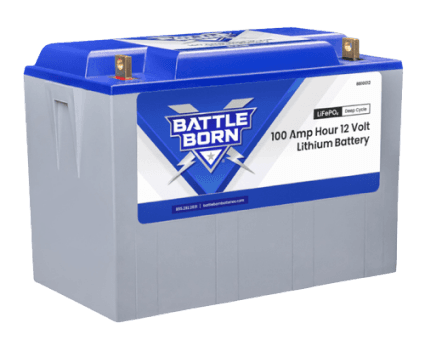

Lithium ion batteries
Lithium batteries are usually the best choice for battery powered rapid deployment camera systems. Compared to lead acid batteries, lithium ion batteries are much lighter and have higher power density characteristics for maximum performance in the field.
A single battery pack can power a system for many days or even weeks. A swappable 2nd battery pack with 110V AC charger allows for unlimited amount time system may be deployed in the field.
Our Rapid Deployment system is capable of operating in both standalone and networked situations, it provides durable, secure, reliable and easy to operate high-resolution wireless IP surveillance in rapidly-changing environments, providing maximum situational awareness.
Applications
- Law enforcement
- First responders
- Disaster management
- Crowd control
- Outdoor and public events
- Scientific studies

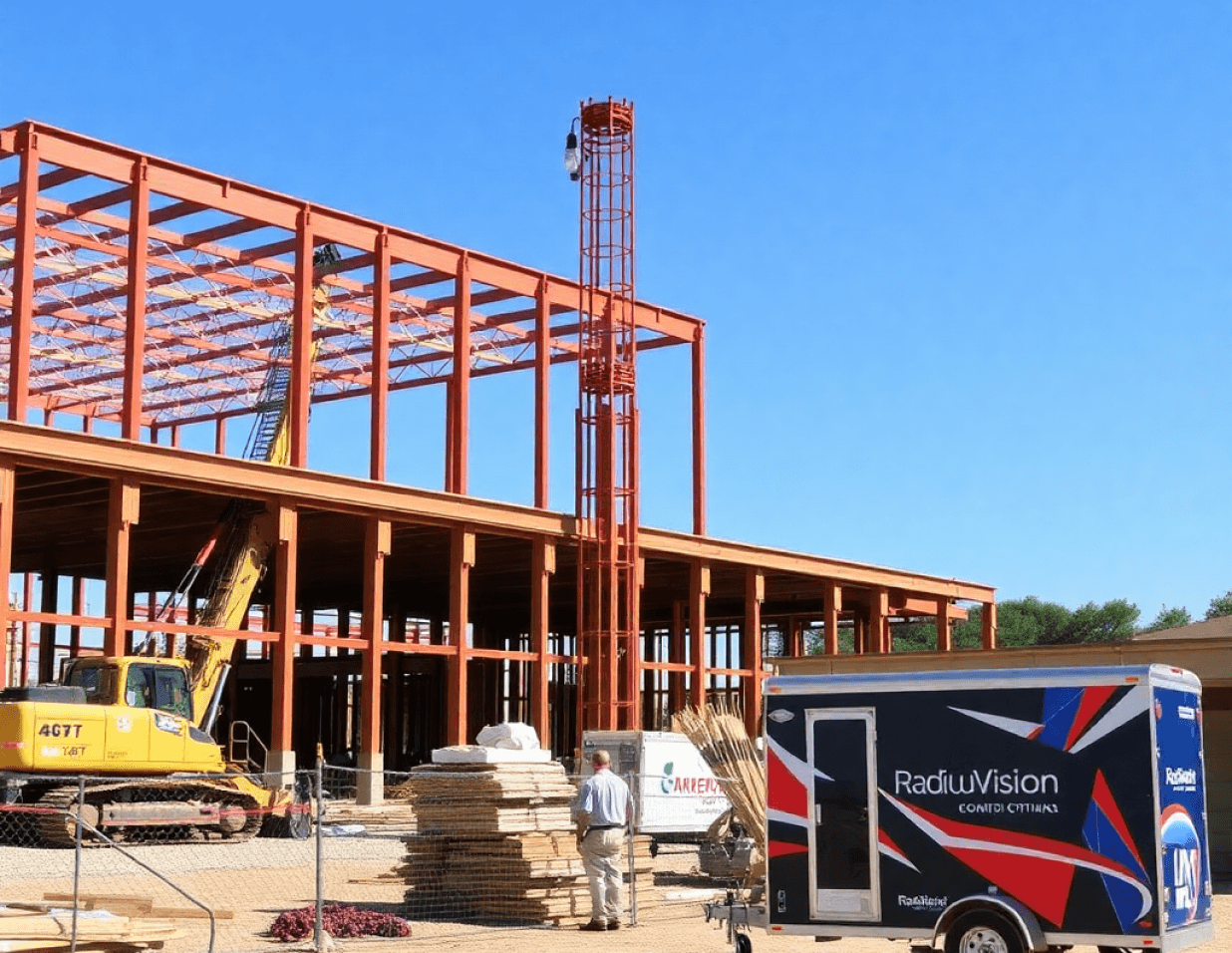

- Construction sites
- Checkpoint security
- Humanitarian assistance
- Intelligence gathering
- Training
Options and accessories
- Fixed cameras up to 33 megapixel image size
- Pan-tilt-zoom cameras
- Thermal imaging cameras
- Infrared cameras
- Self learning video analytics
- Infrared lighting systems
- Extra battery packs
- Carrying/storage case
- Custom paint
Features
- No special tools required
- Heavy-duty, light-weight aircraft aluminum construction extends to 9 feet
- Up to 72 hours (or more) battery life
- Support for popular IP cameras including Mobotix, AXIS, FLIR, Avigilon
- 4G/LTE cellular or point-to-point wireless
- Point-to-point wireless range up to 20 miles (requires clear line of sight)
- Can be used in standalone mode or as part of a multi-tripod mesh system (local and remote access at command-vehicle or police headquarters)
- Hi-gain directional antenna
Pan-tilt-zoom (PTZ) Camera Systems
- Pan-tilt-zoom cameras can read license plates up to 1000′ feet away, providing light is available
- PTZ models are available with IR lighting and thermal imaging
- Custom design/build systems available upon request
Our most compact and portable, fully autonomous models are built using the Mobotix camera system.
- Dual cameras, with choice of 6 megapixel color, black/white or thermal image sensors
- Quick swap modular design lithium battery pack, for up to 6 days of continuous operation
- 4G/LTE communications
- 256GB SD storage
A SINGLE Mobotix camera functions as a COMPLETE, stand alone, high performance video and audio system including advanced analytics and motion analysis.
- NO additional software required…all software included at n/c
- NO moving parts to fail
- Built in Linux operating system
- Built in DVR/NVR
- Built in video management system (VMS)
- Built in intelligent video analytics for advanced motion detection
- Built in Moonlight Technology for very low light operating conditions
- 2-Way Audio & VoIP telephony
- Email & text messaging upon alarm/event
- Exceptional Image Quality
Most autonomous live camera systems require a video management system (VMS) and storage on-board the camera. Mobotix and AXIS cameras meet these requirements.
Mobotix cameras include an embedded VMS. For storage, Mobotix cameras support up to 256GB SD cards. The power requirement for Mobotix outdoor ready cameras is 5-7 watts. This combination of features and functionality make Mobotix our most popular camera for battery powered projects.
AXIS offers a very wide range of cameras that include fixed cameras up to 33MP image size, thermal cameras and many pan-tilt-zoom models to choose from. AXIS cameras do not include a full featured VMS, however, AXIS is one of a few manufacturers that is supported by Exacq Edge VMS, which can run on a 64GB SD card, on-board an AXIS camera.
Another VMS option to consider for a stand-alone camera system is to run a VMS and storage on an embedded fanless industrial computer with a solid state drive (SSD). This does require an outdoor rated NEMA enclosure to provide protection from the elements, and increases the system cost due to additional components and related increase in power requirements.
Camera Types for Rapid Deployment Battery Powered Camera Systems
Mobotix M16 dual lens 6mp
A single Mobotix camera functions as a COMPLETE, stand alone, highly advanced video security or surveillance system. Mobotix designs and builds the entire end-to-end camera system, all hardware and software is built in Germany. Hundreds of important and powerful features are embedded at the camera level. Mobotix network cameras require no housings, no heaters and no fans. No moving parts to fail. All software is included at no additional charge.
AXIS P1448-LE 4K with IR light
AXIS has the industry’s widest range of camera models, form factors and performance capabilities. Fixed models are available with up to 33 megapixel image size, including vandal resistant, infrared lighting built-in and covert models. For maximum functionality, add Exacq Edge video management software running on a 256GB SD card onboard an AXIS camera.
Vivotek 180 with IR light
AXIS P5635-E
Our most popular AXIS PTZ camera is the AXIS P5635-E model with 30x optical zoom. This camera can read a license plate at 1000′.
AXIS Q8742-LE
AXIS Q8742-LE Network Camera is a powerful combination of visual and thermal video streams in a single PTZ. The AXIS Q8742-LE includes a thermal image sensor and a visual image sensor with IR illumination. Ideal for perimeter intrusion detection.
In a perimeter protection environment this camera can “slew to cue”, meaning when any type of sensor (PIR, radar, etc) detects a potential intruder the camera will instantly pan, tilt and zoom to the exact location of the event.
Vivotek pan-tilt-zoom cameras with IR lighting range of 820′
Vivotek PTZ IR
The SD9364-EHL is the latest professional speed dome camera from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 250M IR illuminators and a 30x optical zoom lens, the SD9364-EHL provides a superb low light image in the most challenging situations. The SD9364-EHL also adopts VIVOTEK’s latest IR technology, VAIR (Vari-Angle IR). VIVOTEK’s VAIR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination.
FLIR Thermal PTZ cameras
FLIR Thermal PTZ
The FLIR T4325ZS TCX Thermal PTZ Camera can integrate with existing alarm sensors to deliver accurate, real-time visual assessment and alarm verification in any lighting conditions, including zero light. This PTZ camera allows 360° continuous panning and -15° to 90° tilting.
The TCX Thermal PTZ Camera has on-board Video Motion Detection (VMD) analytics for accurate intrusion detection and supports resolution of up to 336 x 240 at 4:3 aspect ratio. Operates in zero light conditions, in daylight, through smoke, dust, or even light fog.
Thermal cameras operate in zero light conditions
Thermal with Analytics
Thermal cameras are a good option to consider for an intrusion detection system. Thermal imaging cameras do not require any additional lighting systems as they detect and deliver heat signatures from humans, vehicles or other objects. Thermal cameras work in situations like heavy fog/snow/rain that a visual camera might miss.
Mobotix M16 thermal/visual
Mobotix M16 thermal and visual cameras
The Mobotix M16 thermal imaging camera opens up a new range of possibilities including having both a thermal camera AND a 6mp visual camera in one compact design. Thermal radiometry models are available that generate automatic alarms, defined by temperature limits or temperature ranges, to detect and prevent potential fire or overheating of mechanical or liquid mechanical heat sources.
AXIS Q19 series
AXIS thermal cameras
Axis thermal cameras outperform a visual camera in dark scenes and are a great tool for detecting people and objects in 24/7 surveillance, from pitch dark black areas to a sunlit parking lot.
FLIR Multi-Spectral
FLIR multi-spectral cameras with onboard object classification analytics
FLIR Saros includes multiple FLIR thermal sensors, one or more 1080p or 4K cameras, IR and visible LED illuminators, advanced onboard analytics, two-way audio, and digital I/Os. FLIR Saros enables businesses to implement reliable, state-of-the-art outdoor intrusion detection in a cost-effective manner by minimizing the equipment required and reducing false alarms.
FLIR Thermal PTZ
FLIR Thermal PTZ cameras
The FLIR T4325ZS TCX Thermal PTZ Camera can integrate with existing alarm sensors to deliver accurate, real-time visual assessment and alarm verification in any lighting conditions, including zero light. This PTZ camera allows 360° continuous panning and -15° to 90° tilting.
Communications Systems
4G Cellular Router mounted into NEMA 4X Enclosure
4G/LTE cellular systems are most often used when a point-to-point wireless system is not feasible. 4G/LTE cellular systems typically work anywhere cell phone coverage is available. Unlike a point-to-point wireless system, cellular systems do not require aiming antennas, do not require clear line-of-site between sending and receiving radios, nor do they have mounting height issues. For solar calculations the power requirement for a cellular router is about 8 watts.
Our solar powered 4G/LTE cellular camera systems are easy to deploy. Prior to shipping, we pre-configure and fully test your system using the cellular data account that you will provision. You pay your cellular provider their monthly fee. We recommend Verizon whenever possible as this is the easiest system to implement.
Note: It is often not practical to stream live video via 4G/LTE directly to a video recorder, due to the cost of data. The most common tactic is to do image processing and video analytics onboard the camera, save video clips to an SD card onboard the camera or to a solid state drive on a fanless embedded industrial computer.
Our enterprise cloud manager provides system health monitoring, proactive alerts and device notifications
Real time reporting enables you to better understand how your cellular communications system is performing. Alerts will notify you of:
- 4G/LTE modem connectivity issues
- Data usage thresholds for wireless data plans
- Failed login attempts and modem removal, which can indicate physical or cyber security breaches
- Unauthorized users or configuration changes
Point-to-point wireless camera system
Pair of Radios for Point-to-Point Wireless Link
A wireless camera system often uses a point-to-point wireless system. Distances up to 20 miles are possible using high-powered radios with dish antennas. Best performance requires operating in the 5.8Ghz spectrum with clear line of sight between sending and receiving radios. Alternative frequencies are 2.4Ghz or 900Mhz, which can penetrate some degree of obstructions (trees, walls, etc.).
Notes:
- A point-to-point wireless system requires a minimum of 1 pair of radios, 1 to send video and 1 to receive video. The receiving radio (also referred to as gateway radio or gateway node) is most often located at a facility that has high-speed internet service, which allows live or recorded video to be accessed from any internet enabled device.
- Systems may be accessed directly with an IP address with proper credentials, through a video management system or with Apps downloaded to Apple or Android devices.
- Due to their unique codec and internal ring-buffer system, Mobotix cameras are particularly friendly to point-to-point wireless, 3G and 4G LTE environments with variable and unpredictable upstream bandwidth. The buffering system allows Mobotix cameras to recover from temporary interruptions or slowdowns in upstream connectivity by storing compressed image data in the buffer until the upstream connection is restored.
Satellite communications
Satellite System
If wireless or cellular service is not available at your project location, you may want to consider using a satellite system. Satellite systems will work in most locations that lack cellular coverage.
Go to camera location, retrieve video directly from camera
If you don’t have any type of remote communications available, a couple options to retreive video are:
- Run cat5-e shielded cable down pole to a “J” box with ethernet port installed, plug cable into port to retrieve video
- Install wireless access point at this location to access video via your laptop when within 200′ of camera location
Options and Accessories
Night time operations
Cameras require some light in order to operate at night. If there is zero light they won’t function. Some lighting options to consider are:
AXIS Q1765-LE with IR
Cameras with IR lighting built-in
Cameras with built-in IR LEDs are capable of delivering light to about 100′ maximum distance, although some PTZ cameras have IR lighting that is useful to up to 800′.
LED infrared, white or hybrid of infrared/white light
LED lighting systems offer the most flexibility and performance and are available in infrared light (IR), white light or hybrid of IR and white.
RayTec Vario IP
Raytec VARIO IP PoE series of network illuminators are fully IP controllable designed for all camera applications and general area illumination. VARIO IP offers the ultimate flexibility in terms of power input including both PoE (at standard PoE+) or low voltage (12/24V DC).
VARIO IP lighting provides remote access for quick and easy set up, commissioning operation and maintenance of your lighting scheme. Each VARIO IP illuminator has an integrated web interface enabling users to configure, manage and instantly control large lighting installations, from anywhere on the network.
SD card onboard camera storage
Most of our camera systems can store images and video clips on-board the camera with an industrial grade 256GB SD Micro Card
Embedded fanless industrial computer with SSD drives
Another option to consider for a stand-alone camera system is to run a video management system (VMS) and storage on an embedded fanless industrial computer with solid state drives (SSD). This requires an outdoor rated NEMA enclosure to provide protection from the elements, and increases the system cost due to additional components and related increase in power requirements.
Hot Swap 2-Bay NAS
NAS or Windows server located at receiving end of point-to-point wireless link
If you have a point-to-point wireless system, the camera can send video to a NAS or Windows server at the receiving end where internet connection and gateway radio is located.
Off-site storage
Images and video clips can be sent to a server at a different location or “in the cloud”. The limitations for this method are available bandwidth if using 4G/LTE communications.
Long Range PIR
Passive infrared sensors are useful for detecting intrusions which can then be investigated with cameras (fixed or PTZ models). PIR sensors can be wireless, require very little power and can detect a human in zero light conditions at up to 400′ distance.
We can integrate ANY SENSOR TYPE into our systems.
IP Access Control
Access Controls for Remote Locations
Monitor and control doors, gates, storage units and cabinets with IP based access controls.
Ideal for solar powered projects due to low power requirement.
Loudspeaker to amplfiy volume
Add an amplifier installed in NEMA 4X enclosure with 1 or more loudspeakers to deliver sound any distance for talking live or playing recording messages.
Strobe Lights
Add strobe lights to warn away intruders, alert staff when specified events have occurred.
Stop Crime BEFORE it Happens!
Instant Response with 24/7 Central Station Monitoring Service
When your security system detects an intrusion at your property, our 24/7/365 central station monitoring service confirms with live cameras what is happening in real time and if action is required.
A verified video alarm is a PRIORITY ONE RESPONSE from the police, it is a verified “crime in progress”.
24/7 Central Station Monitoring Service
If an unauthorized intrusion has occurred, the police can be dispatched or our trained guards will speak directly to the intruders through the loudspeaker system to warn them off your property before than can do any damage. Other warning devices such as high intensity strobe lights and sirens may be activated to further escalate the response.
Snapshots and video clips of trespassers on your property will be instantly sent to you, police or others for action, investigation and prosecution.
System Health Monitoring Services include:
Connection Issues
Reports when the connection to the system fails or the system goes offline
Camera Failures
Detects if a camera has developed a fault
Tamper Detection
Receive alert if camera has been hit or moved
Recording Issues
Reports if the system records for less than expected
Time & Date Inaccuracy
Reports when the time is incorrect or tampered with
Off-Grid Power System Alternatives to Solar Electric!
Batteries charged by AC power
Batteries are charged by AC power at night, eliminating the need for solar panels.
Consider battery powered camera systems for parking lots or highways where AC power is on at night for lighting, AC power is off during daylight hours.
As an alternative to solar power, parking lots or highways with AC power to pole mounted lights can be equipped with battery back up power systems. This system replaces the solar array for charging the battery bank.
The 12V DC batteries are charged at night when AC power is delivered to the lights, the batteries power the cameras and related subsystems during the day and night. 12V DC power is converted to 48 volt or other voltages with PoE injectors to power cameras and other devices.
Power where you need it
Runs on natural gas, propane or butane.
Thermoelectric Generators (TEG’s) are designed to run on either natural gas, propane or butane. They range in output size from 5 to 550 watts. TEGs are very reliable, due to the fact that they have no moving parts. Rugged system designs, making them ideal for long-term unattended operation in remote locations that may be exposed to harsh weather conditions or where site visits are difficult.
Some common applications include:
Thermoelectric Generator
- Oil or gas pipelines
- Well sites
- Offshore platforms
- Telecommunications sites
- Well automation
- Monitoring equipment
- Communications systems
How do thermoelectric generators work?
Thermoelectric generators are solid-state heat engines that operate according to the Seebeck effect – a theory that claims a temperature difference across thermoelectric material can be converted directly into electrical power.
Consider fuel cells as an alternative to solar power or working in conjunction with a solar electric power system.
Fuel Cells
Easy installation, theft and vandal proof
Fuel cells are lightweight, compact and can easily be installed into existing cabinets and outdoor boxes. When installed inside a suitable enclosure, the EFOY Pro fuel cell is safe from theft or vandalism.
Non detectable
Fuel cells are suitable for silent watch operations or easily camouflaged when integrated into surroundings that do not attract attention. A running, integrated fuel cell cannot be recognized from the outside. No vibrations, noise, exhaust or heat are detectable.
Emission free
Fuel cells have have minimal impact on the environment. Only small amounts of water vapor and CO2 are emitted
